C系列經典PLC主機 ?海為C系列PLC主機使用說明
| 帶以太網型號 | 型號 | 產品規格 | 外形尺寸 WxHxD | |||||
| 24V DC | 220V AC | 24V DC | 220V AC | DI | DO | 通訊口 | 最大擴 展模塊 | |
| C10S0R-e | C10S2R-e | C10S0R | C10S2R | 6 | 4 繼電器 | RS232 + RS485 | 無 |
93×95×82mm |
| C10S0T-e | C10S2T-e | C10S0T | C10S2T | 6 | 4 晶體管NPN | RS232 + RS485 | 無 | |
| C10S0P-e | C10S2P-e | C10S0P | C10S2P | 6 | 4 晶體管PNP | RS232 + RS485 | 無 | |
| C16S0R-e | C16S2R-e | C16S0R | C16S2R | 8 | 8 繼電器 | RS232 + RS485 | 無 | |
| C16S0T-e | C16S2T-e | C16S0T | C16S2T | 8 | 8 晶體管NPN | RS232 + RS485 | 無 | |
| C16S0P-e | C16S2P-e | C16S0P | C16S2P | 8 | 8 晶體管PNP | RS232 + RS485 | 無 | |
| C24S0R-e | C24S2R-e | C24S0R | C24S2R | 16 | 8 繼電器 | RS232 + RS485 | 無 |
131×95×82mm |
| C24S0T-e | C24S2T-e | C24S0T | C24S2T | 16 | 8 晶體管NPN | RS232 + RS485 | 無 | |
| C24S0P-e | C24S2P-e | C24S0P | C24S2P | 16 | 8 晶體管PNP | RS232 + RS485 | 無 | |
| C32S0R-e | C32S2R-e | C32S0R | C32S2R | 16 | 16 繼電器 | RS232 + RS485 | 無 | |
| C32S0T-e | C32S2T-e | C32S0T | C32S2T | 16 | 16 晶體管NPN | RS232 + RS485 | 無 | |
| C32S0P-e | C32S2P-e | C32S0P | C32S2P | 16 | 16 晶體管PNP | RS232 + RS485 | 無 | |
| C48S0R-e | C48S2R-e | C48S0R | C48S2R | 28 | 20 繼電器 | RS232 + RS485 | 無 |
177×95×82mm |
| C48S0T-e | C48S2T-e | C48S0T | C48S2T | 28 | 20 晶體管NPN | RS232 + RS485 | 無 | |
| C48S0P-e | C48S2P-e | C48S0P | C48S2P | 28 | 20 晶體管PNP | RS232 + RS485 | 無 | |
| C60S0R-e | C60S2R-e | C60S0R | C60S2R | 36 | 24 繼電器 | RS232 + RS485 | 無 | |
| C60S0T-e | C60S2T-e | C60S0T | C60S2T | 36 | 24 晶體管NPN | RS232 + RS485 | 無 | |
| C60S0P-e | C60S2P-e | C60S0P | C60S2P | 36 | 24 晶體管PNP | RS232 + RS485 | 無 | |
T系列經典PLC主機 ?海為T系列PLC主機使用說明
| 帶以太網型號 | 型號 | 產品規格 | 外形尺寸 | |||||||||
| 24V DC | 220V AC | 24V DC | 220 VAC | DI | DO | AI | AO | 高速脈沖 輸入 | 高速脈沖 輸出 | 通訊口 | 最大擴 展模塊 | |
| T16S0R-e | T16S2R-e | T16S0R | T16S2R | 8 | 8 繼電器 | 2 路A/B相 | RS232+RS485, 最多5個 | 7 |
93×95×82mm | |||
| T16S0T-e | T16S2T-e | T16S0T | T16S2T | 8 | 8 晶體管NPN | 2 路A/B相 (4點)200KHz | 2 路A/B相 (4點)200KHz | RS232+RS485, 最多5個 | 7 | |||
| T16S0P-e | T16S2P-e | T16S0P | T16S2P | 8 | 8 晶體管PNP | 2 路A/B相 (4點)200KHz | 2 路A/B相 (4點)200KHz | RS232+RS485, 最多5個 | 7 | |||
| T16M0R-e | T16M2R-e | T16M0R | T16M2R | 8 | 6繼電器 | 1 | 1 | RS232+RS485, 最多5個 | 7 | |||
| T16M0T-e | T16M2T-e | T16M0T | T16M2T | 8 | 6 晶體管NPN | 1 | 1 | RS232+RS485, 最多5個 | 7 | |||
| T20M0R-e | T20M2R-e | T20M0R | T20M2R | 8 | 6繼電器 | 4 | 2 | RS232+RS485, 最多5個 | 7 |
131×95×82mm | ||
| T20M0T-e | T20M2T-e | T20M0T | T20M2T | 8 | 6 晶體管NPN | 4 | 2 | RS232+RS485, 最多5個 | 7 | |||
| T24S0R-e | T24S2R-e | T24S0R | T24S2R | 16 | 8 繼電器 | 2 路A/B相 (4點)200KHz | RS232+RS485, 最多5個 | 7 | ||||
| T24S0T-e | T24S2T-e | T24S0T | T24S2T | 16 | 8 晶體管NPN | 2 路A/B相 (4點)200KHz | 2 路A/B相 (4點)200KHz | RS232+RS485, 最多5個 | 7 | |||
| T24S0P-e | T24S2P-e | T24S0P | T24S2P | 16 | 8 晶體管PNP | 2 路A/B相 (4點)200KHz | 2 路A/B相 (4點)200KHz | RS232+RS485, 最多5個 | 7 | |||
| T32S0R-e | T32S2R-e | T32S0R | T32S2R | 16 | 16 繼電器 | 2 路A/B相 (4點)200KHz | RS232+RS485, 最多5個 | 7 | ||||
| T32S0T-e | T32S2T-e | T32S0T | T32S2T | 16 | 16 晶體管NPN | 2 路A/B相 (4點)200KHz | 2 路A/B相 (4點)200KHz | RS232+RS485, 最多5個 | 7 | |||
| T32S0P-e | T32S2P-e | T32S0P | T32S2P | 16 | 16 晶體管PNP | 2 路A/B相 (4點)200KHz | 2 路A/B相 (4點)200KHz | RS232+RS485, 最多5個 | 7 | |||
| T48S0R-e | T48S2R-e | T48S0R | T48S2R | 28 | 20 繼電器 | 2 路A/B相 (4點)200KHz | RS232+RS485, 最多5個 | 7 |
177×95×82mm | |||
| T48S0T-e | T48S2T-e | T48S0T | T48S2T | 28 | 20晶體管NPN | 2 路A/B相 (4點)200KHz | 2 路A/B相 (4點)200KHz | RS232+RS485, 最多5個 | 7 | |||
| T48S0P-e | T48S2P-e | T48S0P | T48S2P | 28 | 20 晶體管PNP | 2 路A/B相 (4點)200KHz | 2 路A/B相 (4點)200KHz | RS232+RS485, 最多5個 | 7 | |||
| T60S0R-e | T60S2R-e | T60S0R | T60S2R | 36 | 24 繼電器 | 2 路A/B相 (4點)200KHz | RS232+RS485, 最多5個 | 7 | ||||
| T60S0T-e | T60S2T-e | T60S0T | T60S2T | 36 | 24 晶體管NPN | 2 路A/B相 (4點)200KHz | 2 路A/B相 (4點)200KHz | RS232+RS485, 最多5個 | 7 | |||
| T60S0P-e | T60S2P-e | T60S0P | T60S2P | 36 | 24 晶體管PNP | 2 路A/B相 (4點)200KHz | 2 路A/B相 (4點)200KHz | RS232+RS485, 最多5個 | 7 | |||

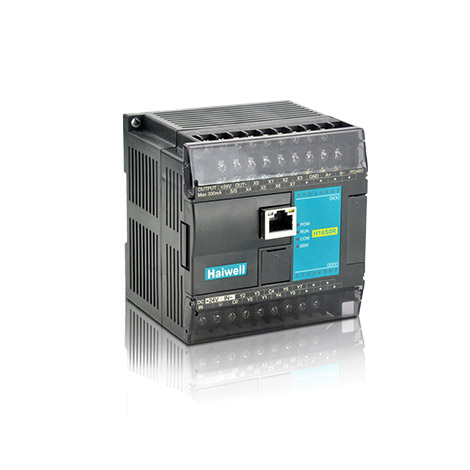

H系列經典PLC主機 ?海為H系列PLC主機使用說明
| 帶以太網型號 | 型號 | 產品規格 | 外形尺寸 WxHxD | |||||||
| 24V DC | 220V AC | 24V DC | 220V AC | DI | DO | 高速脈沖 輸入 | 高速脈沖 輸出 | 通訊口 | 最大擴 展模塊 | |
| H16S0R-e | H16S2R-e | H16S0R | H16S2R | 8 | 8 繼電器 | 4 路A/B相 (8點)200KHz | RS232+RS485, 最多5個 | 7 |
93×95×82mm | |
| H16S0T-e | H16S2T-e | H16S0T | H16S2T | 8 | 8 晶體管NPN | 4 路A/B相 (8點)200KHz | 4 路A/B相 (8點)200KHz | RS232+RS485, 最多5個 | 7 | |
| H16S0P-e | H16S2P-e | H16S0P | H16S2P | 8 | 8 晶體管PNP | 4 路A/B相 (8點)200KHz | 4 路A/B相 (8點)200KHz | RS232+RS485, 最多5個 | 7 | |
| H24S0R-e | H24S2R-e | H24S0R | H24S2R | 12 | 12 繼電器 | 4 路A/B相 (8點)200KHz | RS232+RS485, 最多5個 | 7 | ||
| H24S0T-e | H24S2T-e | H24S0T | H24S2T | 12 | 12 晶體管NPN | 6 路A/B相 (12點)200KHz | 6 路A/B相 (12點)200KHz | RS232+RS485, 最多5個 | 7 | |
| H24S0P-e | H24S2P-e | H24S0P | H24S2P | 12 | 12 晶體管PNP | 6 路A/B相 (12點)200KHz | 6 路A/B相 (12點)200KHz | RS232+RS485, 最多5個 | 7 | |
| H32S0R-e | H32S2R-e | H32S0R | H32S2R | 16 | 16 繼電器 | 4 路A/B相 (8點)200KHz | RS232 + RS485, 最多5個 | 7 |
131×95×82mm | |
| H32S0T-e | H32S2T-e | H32S0T | H32S2T | 16 | 16 晶體管NPN | 6 路A/B相 (12點)200KHz | 6 路A/B相 (12點)200KHz | RS232+RS485, 最多5個 | 7 | |
| H32S0P-e | H32S2P-e | H32S0P | H32S2P | 16 | 16 晶體管PNP | 6 路A/B相 (12點)200KHz | 6 路A/B相 (12點)200KHz | RS232+RS485, 最多5個 | 7 | |
| H40S0R-e | H40S2R-e | H40S0R | H40S2R | 20 | 20 繼電器 | 4 路A/B相 (8點)200KHz | RS232+RS485, 最多5個 | 7 | ||
| H40S0T-e | H40S2T-e | H40S0T | H40S2T | 20 | 20 晶體管NPN | 8 路A/B相 (16點)200KHz | 8 路A/B相 (16點)200KHz | RS232+RS485, 最多5個 | 7 | |
| H40S0P-e | H40S2P-e | H40S0P | H40S2P | 20 | 20 晶體管PNP | 8 路A/B相 (16點)200KHz | 8 路A/B相 (16點)200KHz | RS232+RS485, 最多5個 | 7 | |
| H60S0R-e | H60S2R-e | H60S0R | H60S2R | 36 | 24 繼電器 | 4 路A/B相 (8點)200KHz | RS232+RS485, 最多5個 | 7 |
177×95×82mm | |
| H60S0T-e | H60S2T-e | H60S0T | H60S2T | 36 | 24 晶體管NPN | 8 路A/B相 (16點)200KHz | 8 路A/B相 (16點)200KHz | RS232+RS485, 最多5個 | 7 | |
| H60S0P-e | H60S2P-e | H60S0P | H60S2P | 36 | 24 晶體管PNP | 8 路A/B相 (16點)200KHz | 8 路A/B相 (16點)200KHz | RS232+RS485, 最多5個 | 7 | |
